BOOK NOWQuick Symptom Guide: What You Are Seeing and What It Means
The table below maps each symptom to its most likely cause and tells you whether the fix is realistic for a homeowner.
| Symptom | Likely Cause | DIY or Pro |
|---|---|---|
| Bin empty, water dispenser still works | Arm raised or ice maker switched off | DIY (30 seconds) |
| Ice stopped after a filter change | Filter not seated or wrong model | DIY |
| Small or hollow cubes | Clogged filter or low water pressure | DIY |
| Ice stopped, dispenser still works | Frozen fill tube or failed solenoid | DIY to Pro |
| Ice stopped and dispenser stopped | Different fault on the door water path | See dispenser guide |
| No ice after arm, filter, and temperature confirmed | Inlet valve solenoid or module | Pro |

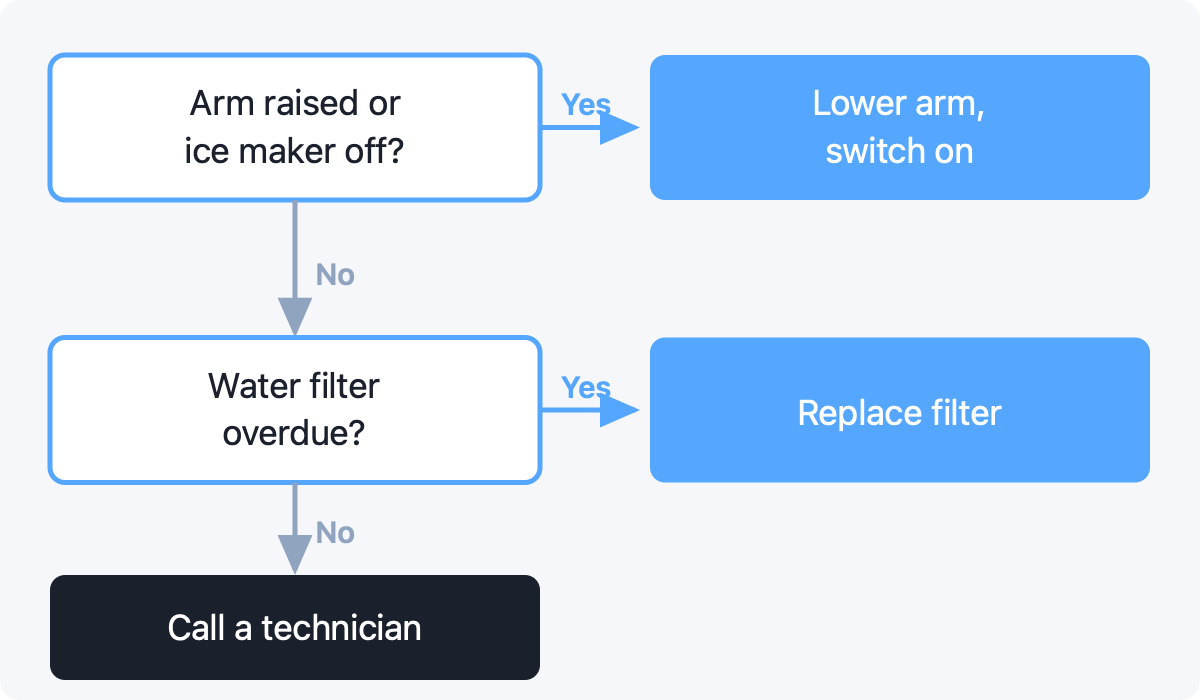

Start Here: Check the Arm and Reset First
Check Whether the Arm Is Raised
The wire shutoff arm, also called the feeler arm, rests on top of the ice in the ice bin. A KitchenAid ice maker arm stuck in the raised position, also called a shutoff arm raised position, cuts the harvest circuit; lower it and confirm the control panel switch is also on.
The shutoff arm is the first thing I check on a KitchenAid ice maker call. If it was bumped when someone took out the bin, the fix is free and takes thirty seconds.
How to Reset a KitchenAid Ice Maker
KitchenAid documents two reset methods: press and hold the reset button on the ice maker head, or unplug the refrigerator for one minute. This covers how to reset KitchenAid ice maker on any unit; the KitchenAid ice maker reset button location is on the underside or face of the module. For the power cycle reset, leave the refrigerator unplugged for one full minute and give it a few hours.
Water Supply Problems Are the Most Common Cause
Replace the Water Filter First
When a KitchenAid fridge not making ice passes the arm and switch checks, start at the water filter. An overdue filter reduces pressure enough to produce hollow cubes before stopping production entirely; KitchenAid recommends an everydrop filter replacement every six months. A KitchenAid ice maker not working after filter change often means the new filter was not fully seated or the wrong model was installed.
Hard water varies by city across Denver Metro; Denver Water reported about 105 mg/L, roughly 6 grains per gallon, for 2025. Centennial averages 11 to 13 grains per gallon; 2025 testing ranged from 4.3 to 15.4 grains per quarter, and the top of that range sits above the threshold appliance makers flag as scale-damaging. The everydrop six months interval can understate how quickly a filter reaches its limit on harder supplies, and scale acts at the valve seat and at the filter itself.
Inspect the Supply Line and Shutoff Valve
A kinked supply line or a partially closed shutoff valve reduces flow enough to stop ice production while the dispenser keeps working. Pull the refrigerator forward and trace the line; a KitchenAid ice maker not getting water often traces to a kink from the last move.
When the Water Inlet Valve Solenoid Fails

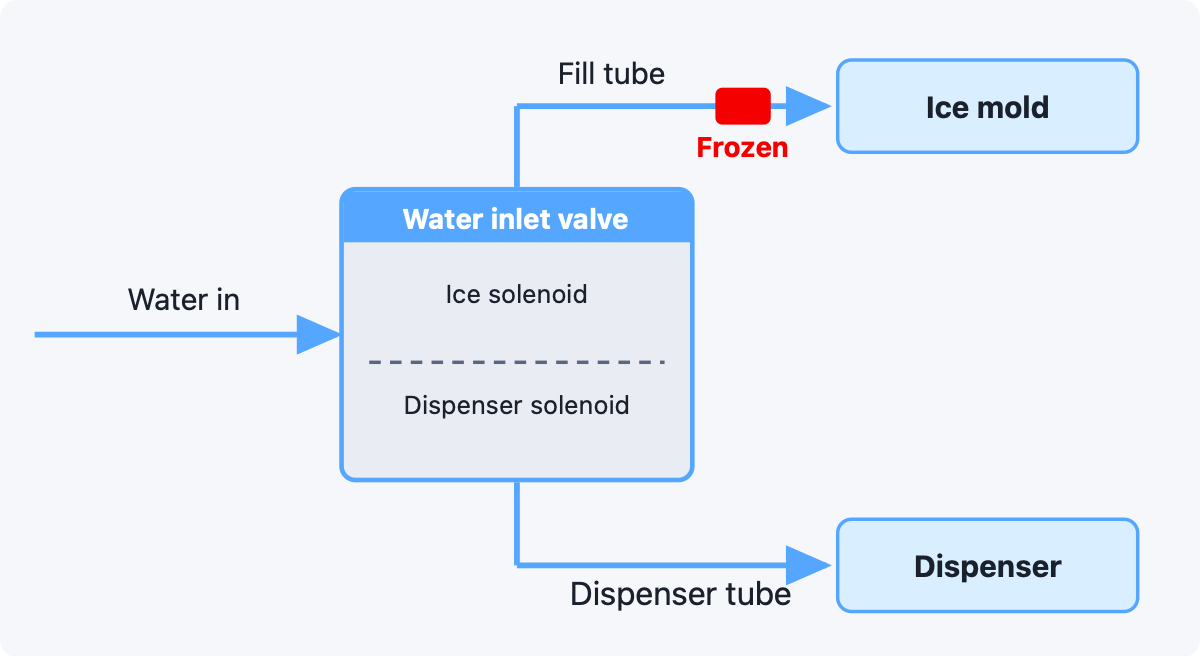

The water inlet valve carries a dual solenoid valve body: one solenoid feeds the fill tube, the other the dispenser. Scale at the valve seat can restrict or seize one solenoid while the other still opens, which is why “KitchenAid refrigerator not making ice but water works” does not rule out a valve problem.
The two solenoids allow an isolation test: swap the lead wires, activate the dispenser, and note whether water reaches the ice mold; if the fault follows the solenoid, replace the valve. This test requires pulling the refrigerator and accessing the rear lower panel; route to a technician if that is not comfortable for you.
If the filter and supply line are clear and KitchenAid not making ice continues, book a diagnostic online and our Denver Metro team can test the valve and module directly. We follow the same order on other brands, including our Frigidaire ice maker not working guide.
Freezer Temperature and the Frozen Fill Tube
Freezer Temperature Target and the 24-Hour Wait
KitchenAid specifies a 0 to 5 Fahrenheit target on producthelp.kitchenaid.com. After adjusting the setting, a 24-hour stabilization wait is required before rechecking. If freezer temperature keeps drifting above 5 degrees despite adjustment, a sealed system fault may be driving it; see our refrigerator not cooling guide for that path.
Thawing a Frozen Fill Tube
When a defrost cycle issue or door seal failure lets warm air into the freezer, moisture freezes inside the fill tube and blocks it. This fill tube fence is the key distinction: the dispenser draws from a separate solenoid and keeps working, but the ice maker path goes silent.
If the dispenser also stopped, our refrigerator water dispenser not working guide covers it. A fill tube that refreezes calls for a technician visit.
Which KitchenAid Model You Have Changes the Diagnosis
Side-by-Side Refrigerators
Side-by-side refrigerators mount the ice maker in the upper freezer section, where the wire shutoff arm runs across the right side of the module head. A KitchenAid side by side ice maker not working diagnosis starts at the arm or the reset button on the face of the module. Because KitchenAid is a Whirlpool platform, the model matters most for whether the reset button is on the face, the underside, or accessed through the control panel.
French Door and Bottom-Freezer Models
On these models, the ice maker sits in the bottom freezer drawer. A KitchenAid French door refrigerator not making ice on newer units often traces to the optical sensor. The ice bin must be fully snapped into place; a bin seated partway misaligns the beam and the ice maker reads the compartment as full.
French Door With In-Door Ice System
Unlike freezer-mounted units, the in-door ice system places the ice maker inside the left door; the fill path runs through the hinge and kinks there more readily. If arm, filter, and temperature checks have not restored production, inspect the door supply line before the solenoid.
Ice Maker Module and Optical Sensor Failure
Signs the Module Has Failed
The ice maker module controls the harvest cycle through an ice mold thermostat. When the thermostat reads cold enough, the module opens the water inlet valve and the mold fills. The water freezes, the heater releases the cubes, and the ejector arm sweeps them into the bin. When the module fails, none of that sequence initiates: no fill sound, no ejector arm movement, no motor noise.
When a KitchenAid ice maker stopped working, module failure presents as a KitchenAid refrigerator stopped making ice without warning. Accessing the ice maker assembly requires removing a freezer shelf and disconnecting a wiring harness; see our residential ice maker repair page for technician service.
Ice Bin Alignment and the Optical Sensor
The optical sensor ice level detection reads ice with an infrared beam across the ice bin compartment. Ice chips or condensation on the sensor lens cause a false full reading; clean the lens tabs on both sides with a dry cloth, pull the bin out, and reseat it until it clicks. A bin fully snapped is the only position where the sensor pair aligns.
When to Call Wilson and Myers
Route to a technician when the arm is down, filter replaced, supply line clear, and freezer at the 0 to 5 Fahrenheit target and production has not returned. The fault is likely the water inlet valve solenoid, the ice maker module, or the control board.
Wilson and Myers technicians are EPA-608 certified and serve the Denver Metro Area, including Denver, Cherry Hills Village, Greenwood Village, Littleton, and Centennial. For KitchenAid refrigerator repair, we source parts through national supplier networks and manufacturer contracts.
Book online and our Denver Metro team will confirm availability for your area.
KitchenAid Ice Maker Not Working: Common Questions
Why is my KitchenAid ice maker not working?
Common reasons a KitchenAid ice maker stops producing include the shutoff arm being raised, the ice maker switched off at the control panel, an overdue filter, and a kinked supply line or closed valve. These four causes are all free to check.
How do I reset my KitchenAid ice maker?
Press and hold the reset button on the ice maker head; the exact location varies by model but is typically on the underside or face of the module. The second method is to unplug the refrigerator for one minute. After the power-cycle reset, give it a few hours before checking production.
Why does my KitchenAid refrigerator not make ice but water works?
When water dispenses but ice does not, the fill tube is likely frozen or the ice maker solenoid on the inlet valve has failed. The fill tube and the dispenser draw from separate solenoids on the same valve body, so one path can fail while the other stays open.
How do I know if my KitchenAid ice maker is broken or just off?
Lower the shutoff arm fully and confirm the ice maker is switched on. If the arm is down and the unit is on and no ice appears after 24 hours, check the filter, supply line, freezer temperature, and fill tube.
Is there a reset button on a KitchenAid ice maker?
Most KitchenAid in-refrigerator ice makers have a reset button on the underside or face of the ice maker head; the exact location varies by model. An alternative that works on all models is to unplug the refrigerator for one minute.
Why would a KitchenAid ice maker suddenly stop working?
Sudden stops usually mean the shutoff arm was knocked up when someone pulled the bin, or the ice maker was accidentally switched off. A frozen fill tube from a door seal or defrost cycle fault can also stop production overnight with no warning.
