BOOK NOW| Symptom | Most Likely Cause | DIY or Pro |
|---|---|---|
| No ice and the arm is up | Control arm in STOP position | DIY (30 seconds) |
| No ice, arm down, bin empty | Filter overdue, off switch, or water supply issue | DIY first |
| Water dispenser works, no ice | Ice maker inlet solenoid failure | Pro |
| Small or hollow cubes | Filter clog or scale on inlet valve | DIY then Pro |
| Cycling sounds but no ice | Frozen fill tube or module failure | DIY (defrost) then Pro |
| New unit, no ice after 24 hours | Arm position or water line connection | DIY |
Start Here: Arm Position and the Reset Procedure
Causes 1 and 2 need no parts and take under five minutes. The feeler arm controls whether the ice maker runs; the reset clears electronic glitches.
Cause 1: Check the Feeler Arm and Ice Maker Switch

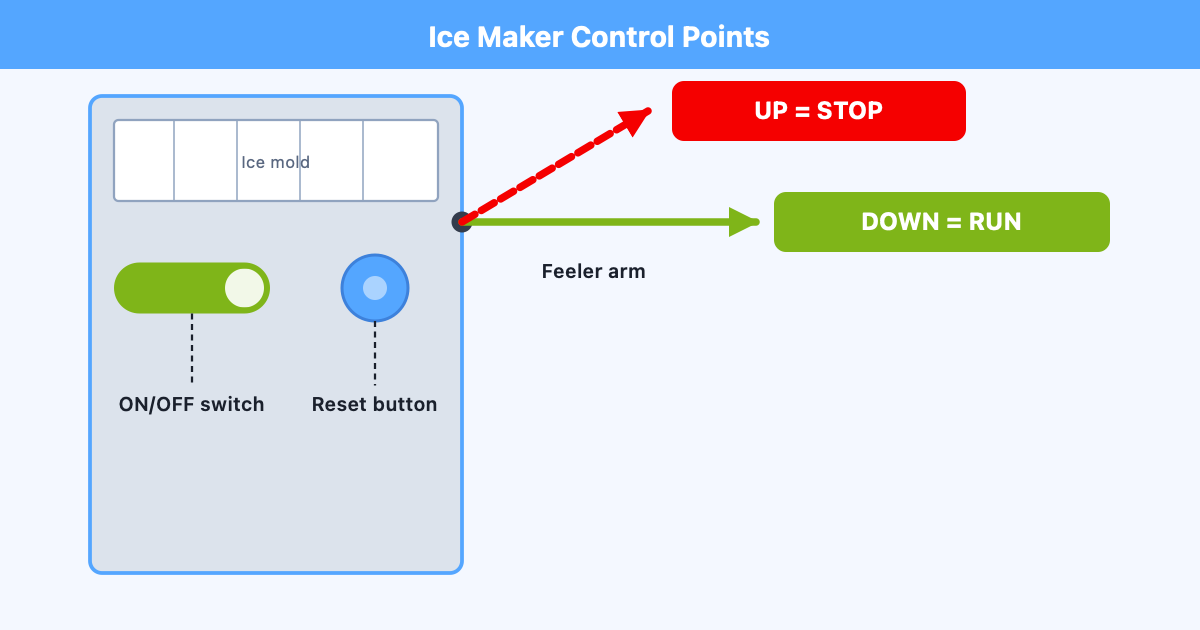

The feeler arm, also called the control arm, is a physical on/off sensor above the ice bin. Arm UP stops production. Arm DOWN runs it. Reaching into the freezer can knock the feeler arm stuck up without anyone noticing.
Push the arm firmly DOWN, then check the ON/OFF slider on the unit’s side; both must be on. Note: Frigidaire ice maker not dispensing ice at the door is a separate auger issue, not a production failure.
Cause 2: The Frigidaire Ice Maker Reset Procedure
A targeted Frigidaire ice maker reset clears the module and forces a fresh harvest cycle.
- Remove the ice bin; place a towel under the unit to catch any drips.
- Flip ON/OFF off for five seconds, then back on.
- Hold the reset button five seconds; check the manual for button location if not visible.
- Cycle the feeler arm up and down several times to calibrate the sensor.
- LED models: hold ON/OFF until LED turns red, wait two minutes, hold again until green. LED red then green confirms the reset is complete.
- Replace the bin and allow 24 hours before expecting production.
Allow the full 24-hour reset window before concluding the reset failed. Each harvest cycle runs 90 to 120 minutes; that 24-hour ice cycle means the bin needs several complete cycles to fill. In my experience, about one in five Frigidaire ice maker not working calls resolves at this step. Wait the full day.
Water Supply Is the Most Common Cause of Frigidaire Ice Maker Not Working
After arm and reset check out, the water supply path is next. Frigidaire ice maker not making ice, or a Frigidaire refrigerator not making ice at all, most often traces to the filter, the supply line, or the inlet valve. Problems with Frigidaire ice maker water delivery account for the majority of calls that advance past the arm check.
Cause 3: Replace the Water Filter First
A filter past its six-month replacement date restricts water flow enough to halt production entirely. Non-OEM aftermarket filters can cause the same restriction even when brand-new. A Frigidaire fridge not making ice after a recent filter swap usually means the housing was left empty. The slot needs a filter or a bypass plug in its place; empty, it blocks all water flow.
Cause 4: Check the Water Line and Shutoff Valve
Trace the water supply line from behind the refrigerator to the shutoff valve at the wall. The valve must be fully open; a quarter-turn closed produces hollow cubes or stops production entirely. Kinking is common after the refrigerator is moved, and any sharp bend restricts flow.
Cause 5: Test the Water Inlet Valve
If the dispenser works but the ice maker produces no ice, the ice maker solenoid on the water inlet valve has failed. If neither dispenser nor ice maker works, the full valve body has failed.
Denver hard water scale is the primary culprit. Fill tube inlet valve scale from Denver Water’s elevated calcium and magnesium progresses from hollow cubes to no ice at all. The valve requires 20 psi minimum pressure to open, and corroded supply pipes can drop line pressure below that threshold.
Before testing the water inlet valve, turn off the water supply valve and unplug the refrigerator. A multimeter on Rx1 should read 500 ohms to 1.5k ohms; the 500 ohm resistance test outside that range confirms solenoid failure. Contact a technician.
Temperature Problems and a Frozen Fill Tube
Ice makers require freezer temperatures between 0 and 5 degrees F to complete a harvest cycle. A warm freezer stops production even with perfect water supply. A frozen fill tube stops production differently. The ice maker cycles, the motor runs, and no ice appears in the mold.
Cause 6: Bring the Freezer to the Right Temperature
The ice maker will not run a harvest cycle above 10 degrees F. Set the freezer to 0 degrees F. Allow 24 hours. Signs temperature was the cause: soft cubes before production stopped.
Cause 7: Thaw a Frozen Fill Tube

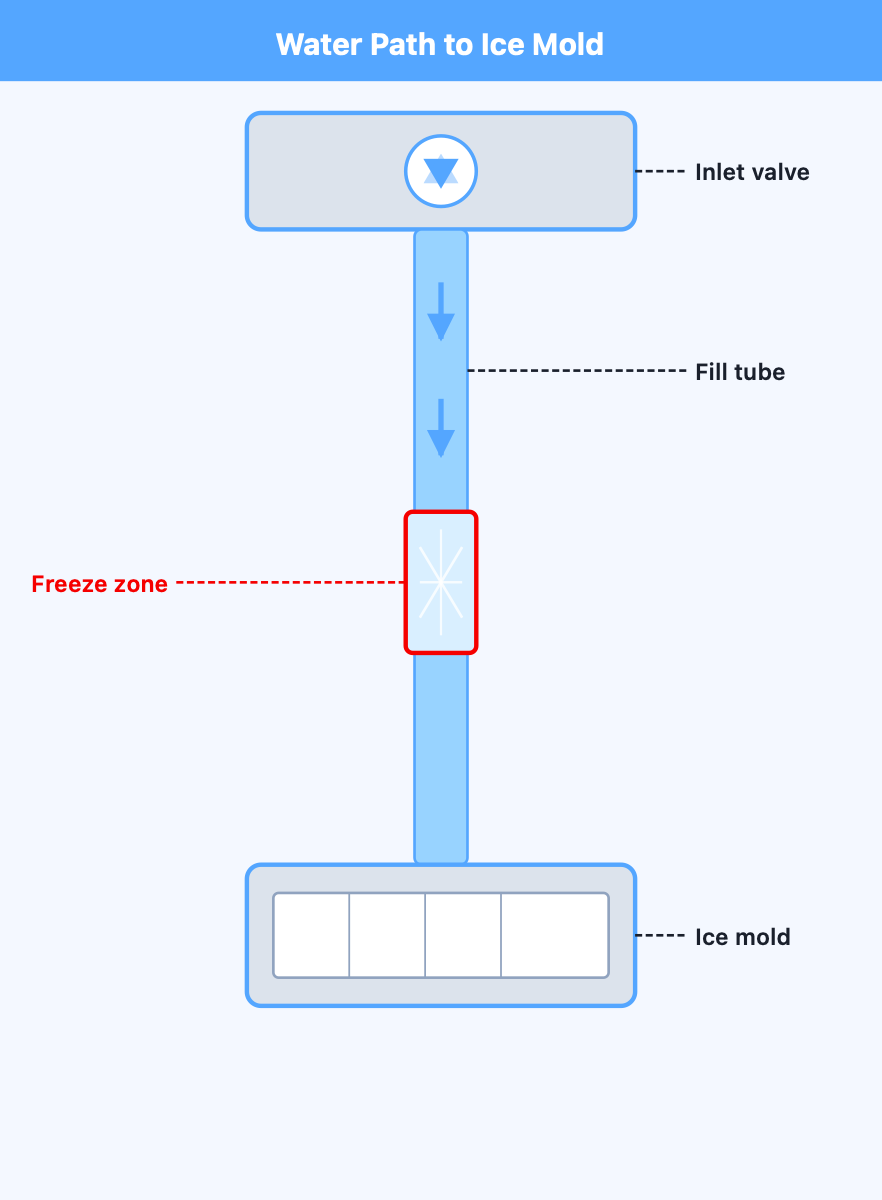

When you hear the ice maker cycling but find no ice and no water reaching the mold, the fill tube is likely frozen. The fill tube connects the water inlet valve to the ice maker mold; a slightly-failed valve that drips lets water refreeze inside the tube. A frozen fill tube Colorado homeowners encounter most often in secondary refrigerators kept in unheated garages.
Apply a hairdryer on low heat near the tube. If it refreezes within a month, the inlet valve is the root cause.
Frigidaire Gallery Ice Makers: One Additional Weak Spot
Frigidaire Gallery models share every cause above, but carry one documented failure not found on standard units. If your Frigidaire Gallery ice maker is not working, check these items after completing causes 1 through 4.
First: the Gallery Series feeler arm can freeze UP due to ice at its pivot point. Wipe the arm and pivot with a warm cloth, then seat the arm firmly DOWN.
Second: the FGHB2866PF model has a documented fill tube freeze, and Frigidaire Gallery side-by-side refrigerator owners should inspect it for the same pattern. The FGHB2866PF fill tube kit, also called the Gallery fill tube kit for the line, is the service part that addresses it. Frigidaire Gallery ice maker replacement is a whole-unit swap when arm and tube both check out. See our Frigidaire Gallery repair page for service details.
When the Ice Maker Module Has Failed
When the freezer is at the correct temperature and water supply is confirmed, three internal components are candidates: the ice maker module, the mold thermostat, or the ice level control board. Once the mold reaches its threshold temperature, the mold thermostat harvest cycle begins and the tray ejects its cubes, so a failed thermostat means harvest never initiates. Unplug the refrigerator before removing any panel to reach these components. All three require professional testing to isolate.
When module and thermostat check out but production still does not resume, sealed assembly replacement is the remaining path. This is the replacement tail conversion, the Frigidaire refrigerator ice maker replacement step where a technician swaps the sealed ice maker assembly to your exact model spec. A new ice maker not making ice immediately after replacement is normal; allow 24 hours. We source Frigidaire parts through national supplier networks.
Most Frigidaire ice maker calls come down to three things: arm up, filter overdue, or inlet valve scaled by Denver water. The Gallery fill tube freeze surprises homeowners most.
When to Call Wilson and Myers
Run through causes 1 through 4: arm position, reset, water filter, and water line. Those checks need no parts and resolve most Frigidaire ice maker not working cases without a visit. When the path reaches inlet valve testing, frozen fill tube root cause, or anything inside the sealed module, contact our insured team. For refrigerator issues beyond the ice maker, our refrigerator troubleshooting guide covers the full appliance.
Wilson and Myers serves Denver, Highlands Ranch, Lakewood, Centennial, and Englewood in the Denver Metro Area. Our insured technicians carry equipment for inlet valve testing and sealed assembly work on every Frigidaire refrigerator ice maker troubleshooting call. Book refrigerator repair service or Schedule a refrigerator repair in Denver when the DIY path runs out.
Frequently Asked Questions
How do I reset my Frigidaire ice maker?
Flip ON/OFF off for five seconds, then back on. Hold the reset button five seconds. LED models: hold until red, wait two minutes, hold until green. Allow 24 hours after the Frigidaire ice maker reset before expecting consistent production.
Why did my Frigidaire ice maker suddenly stop working?
The feeler arm knocked to STOP is the most common cause of a Frigidaire ice maker stopped working suddenly. A water filter past its date is second, and both take under five minutes to check. If both check out and you are still asking why is my Frigidaire ice maker not working, move to the water supply line and inlet valve next.
How long does a Frigidaire ice maker take to make ice after a reset?
Allow 24 hours minimum. Each harvest cycle runs 90 to 120 minutes, and the bin needs several complete cycles to fill. Honor the full window before concluding the Frigidaire ice maker reset failed.
How do I know if my Frigidaire water inlet valve is bad?
If the dispenser works but the ice maker does not, the inlet valve solenoid has failed. Test with a multimeter on Rx1: 500 ohms to 1.5k ohms is acceptable. The 500 ohm resistance test outside that range confirms solenoid failure.
Why is my Frigidaire Gallery ice maker not working?
Gallery models most often fail at the feeler arm pivot or fill tube. The FGHB2866PF fill tube kit resolves the documented freeze on that model. If arm and fill tube check out, Frigidaire Gallery ice maker replacement of the full sealed ice maker assembly is the remaining path.
